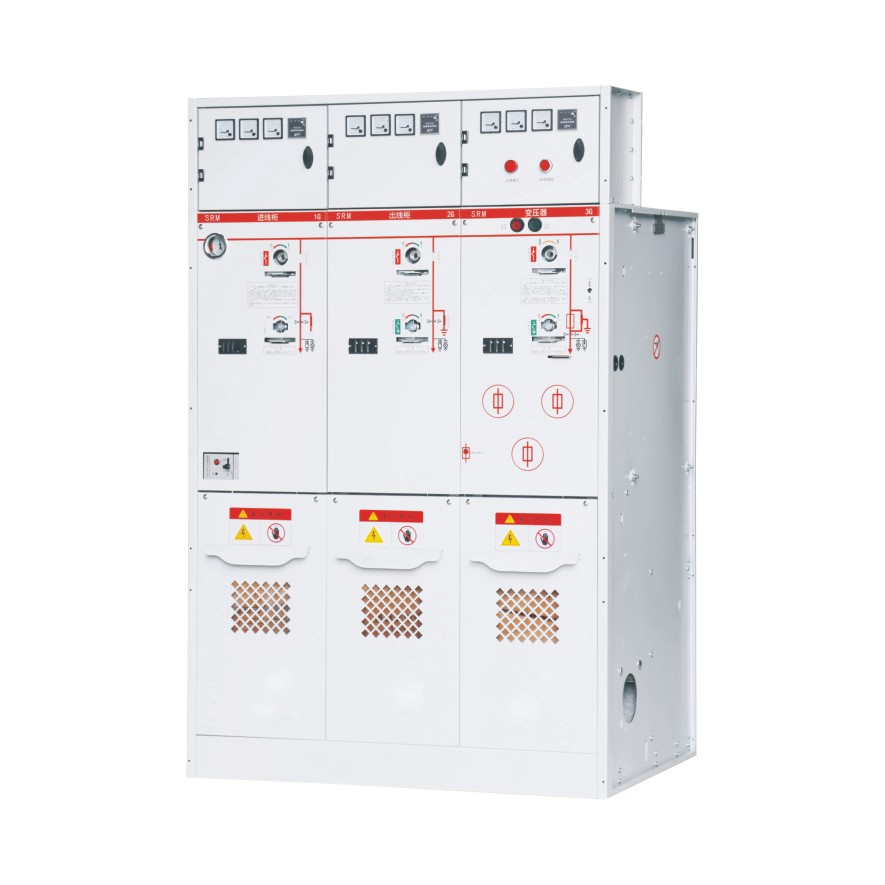

The SRM series Gas insulated switchgear was passed the type test from National High-low Voltage Electrical Apparatus Quality Supervision and Inspection Center (NEIC). The product widely use for 10kV, 24kV Power Systems. The SRM switchgear was designed for modular usage, it can make difference group, that can suitable for lots of requirements of compact area. SRM series switch is complete sealed system, all the electric parts and switch were sealed inside the stainless cabinet. The switch equipment will not affect by surround environment, which can make sure work safety and free maintains. And the end-user can choose the extension busbar to make it complete modular design. Meanwhile, we supply the automation and intelligentialize program, that can low down the work for workers.
Technical Features
Protection degree |
| |||
SF6 gas pressure | 0.4bars under 20℃(relative pressure) | SF6 Gas tank | IP67 | |
Fuse external shell | IP67 | |||
Anual leakage rate | ≤0.25‰/year | Switch cabinet shelter | IP3X | |
Bus bar |
| |||
Soaking testing | Unade water of 0.3bars pressure/24 hours | Bus bar inside cubicle 400mm2 Cu | ||
Arc testing | With arc extinguisher 25kA/1s； | Earthing bus bar of the cubicle 150mm2 Cu |
| |
| Without arc extinguisher 16kA/1s | Bolt diameter:M10 |
| |
|
| Thickness of stainless steel gas tank 3.0 mm | ||
Technical Information
Technical Specification |
|
|
|
|
|
|
|
|
| C Module | F Module | V Module | Cb Module | ||
Item | Unit | Load Break Switch | Switch Fuse | Vacuum Switch | Isolate/ Earhing Switch | Vacuum Circuit Breaker | Isolate/ Earhing Switch |
Rated Voltage | Kv | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 |
Power Frequency Withstand Voltage | Kv | 42/50 | 42/50 | 42/50 | 42/50 | 42/50 | 42/50 |
Lightning Impulse Withstand Voltage | Kv | 95/125 | 95/125 | 95/125 | 95/125 | 95/125 | 95/125 |
Rated Current | A | 630/630 | 注1 Note1 | 630/630 |
| 1250/630 |
|
Rated Transfer Current | A |
| 1750 |
|
|
|
|
Closed Loop | A | 630/630 |
|
|
|
|
|
Off Load Cable Charging | A | 135/135 |
|
|
|
|
|
5% Rated Active Load Drop-out Current | A | 31.5/- |
|
|
|
|
|
Earth Faut Breaking Current | A | 200/150 |
|
|
|
|
|
When earth fault,drop-out | A | 115/87 | 注2 Note2 | 20/16 |
| 25/20 |
|
Current of cable charging |
|
|
|
|
|
|
|
Short Circuit Drop-out Current | Ka |
| 注2 Note2 | 50/40 | 50/40 | 63/50 | 63/50 |
關(guān)合能力 Making Capacity | Ka | 63/50 |
|
|
|
|
|
Short Time Current 3s | Ka | -/20 |
| 20/16 | 20/16 | 31.5/25 | 31.5/25 |
Mechanical Life | 次 | 5000 | 3000 | 5000 | 2000 | 10000 | 5000 |
Note：1)varies With Rated Current Value Of Fuse
2)limited By High Voltage Fuse

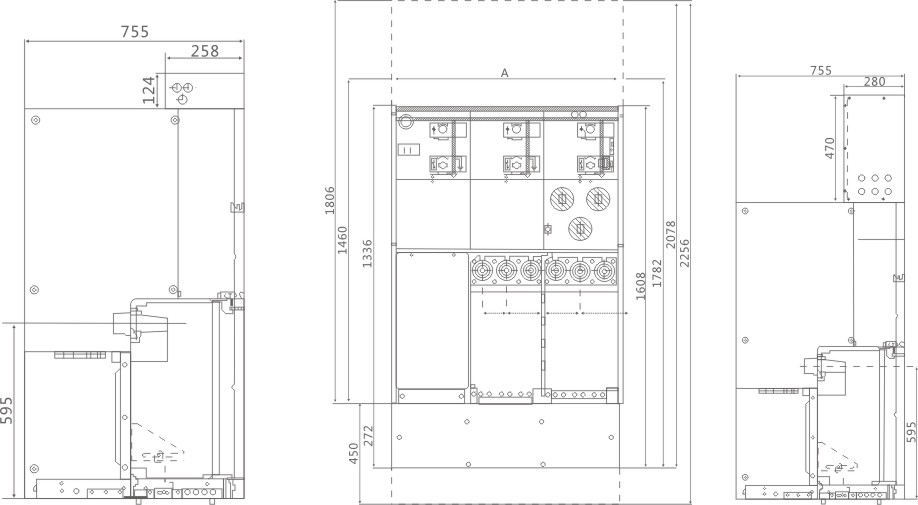

?Overall and installation dimensions
?
