Product Center

    • High Voltage Current Limiting Fuse for Full Range Protection

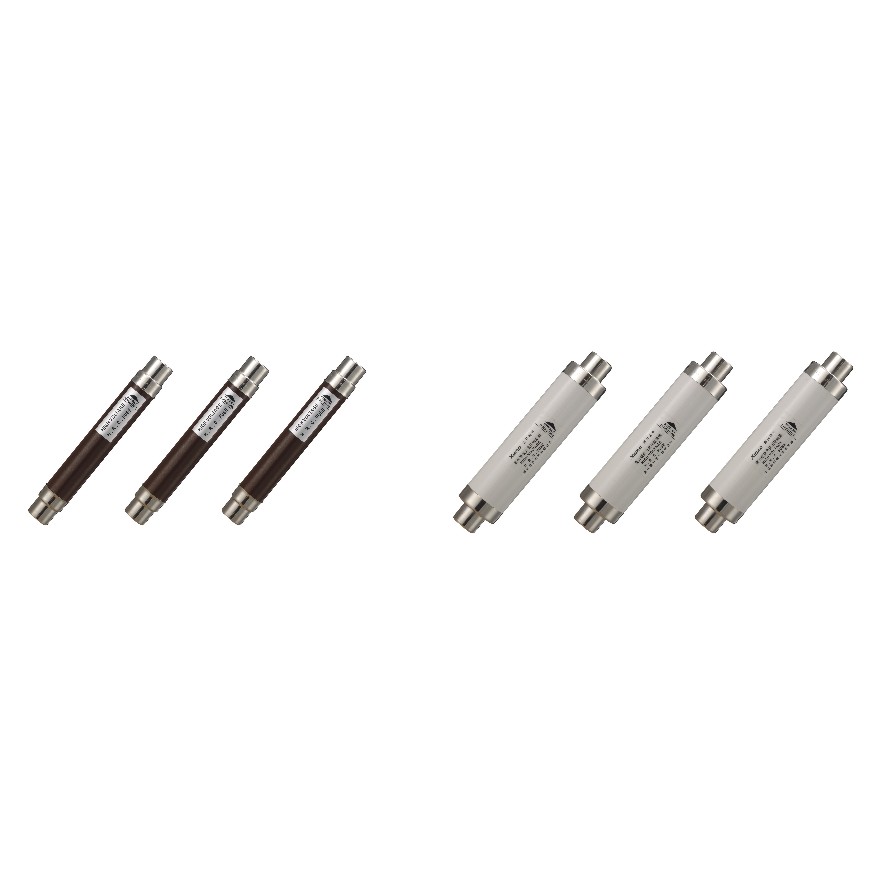

    High Voltage Current Limiting Fuse for Full Range Protection

    This series of products is suitable for indoor AC 50Hz, rated voltage 12kV system. It can reliably cut off any fault current between minimum open current and rated open end. The products not only have high breaking ability of current limiting fuse, but also have better small current protection characteristics of non-current limiting fuse. Good protection characteristics of full-range interruption can be obtained.

    Technical Information

    Technical Specification











    Rated voltage (kV)



    12





    12

     Fuse rated current (A)



    63





    100

    Melt Rated Current (A)

    10、16、20、25、31.5、40、50、63

    80、100

    Turn-on Current (kA)



    50





    50

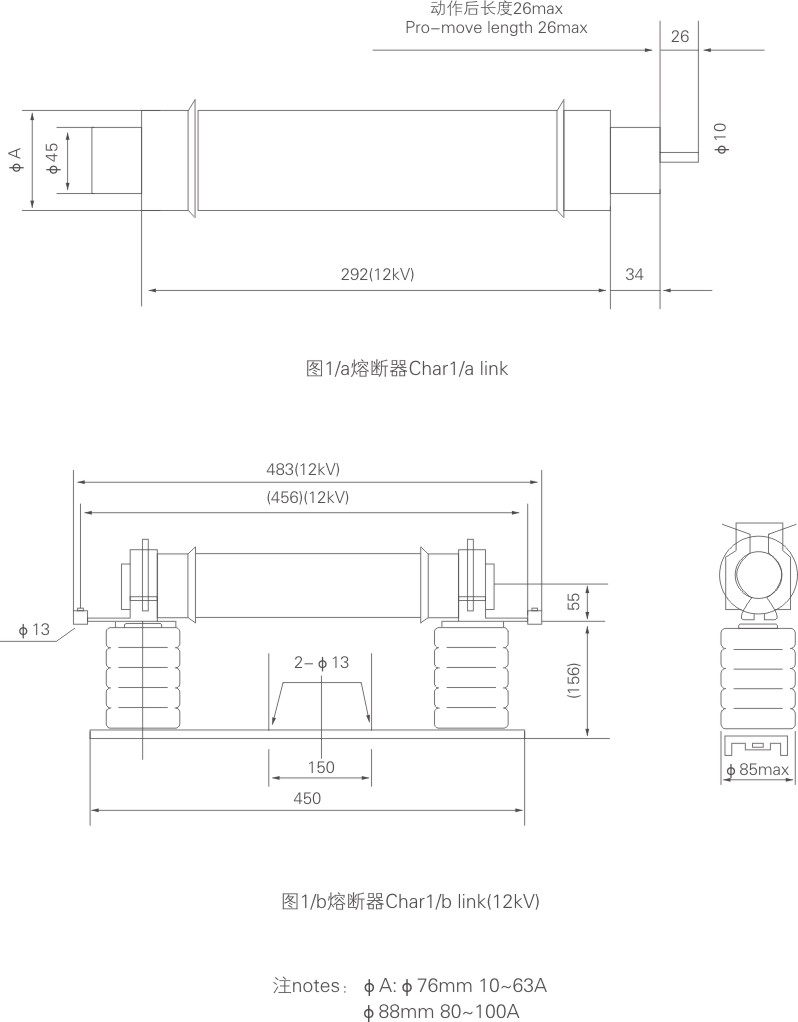

    Overall and installation dimensions

    12kV Transformer Primary Voltage 12 kV

















    Transformer capacity



    ≤125

    160

    200-250

    315

    400

    500

    630

    800

    Fuse rated current A



    10

    16

    20

    25

    31.5

    40

    50

    63

    Fuse Model
